Comfortable handset with RECORD & REV/PLAY buttons
10 one-touch programmable dialers
Auto-log feature can automatically run a dialer upon powering on
Internal battery backup retains programming even with loss of power

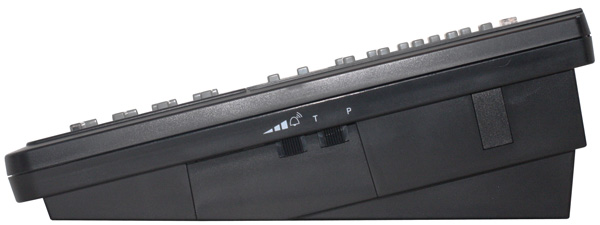

DIP switch toggles between Dictaphone or Lanier emulation
Compatible with Dolbey Fusion, DVI, Winscribe & Voice Solutions systems
Package Contents

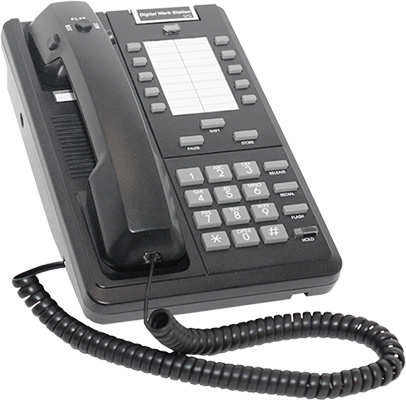

DA-110RS Dictate Station
12v A/C adapter
Product Manual
Dimensions
9" tall x 6" wide x 3.5" deep
Emulation Options
Dictaphone
Lanier
Emulation Help
The emulation you choose for your telephony station determines what tones are produced from certain functions. Most digital dictation systems allow you to modify what function corresponds with a tone. However, with some systems you will need to have a station that matches the tones and functions already configured. Or perhaps you simply want to match the emulation of previous stations for consistency.
To illustrate what different emulations do, let's say a particular station has a Play button. One emulation may send a 1 for its tone. Whereas another may send a 3. Most stations only have one emulation per chipset, however this model has a toggle between both.
Dictaphone Emulation
| Record |
Rewind |
Play |
Stop |
New Job |
| D |
7 |
B |
B |
8 |
Lanier Emulation
| Record |
Rewind |
Play |
Stop |
New Job |
| 2 |
3 |
1 |
4 |
5 |
